3 Layers Vacuum Infusion Flow Mesh, Flow Mesh Combo with Peel Ply and Release Film (SKU:CVM3)


SKU: CVM3
Material: Flow Media + Release Film + Peel Ply
MOQ: 5000 m²
Sample: Free Sample
Shipping: Support Express · Sea freight · Land freight · Air freight
Delivery time: 10-35 days
Payment: T/T, L/C
Packaging: 1 rolls
Add To Inquiry
Product DescriptionReviews

l  Product Description:

Flow media is a kind of resin drainage medium with low cost, which is widely used in vacuum infusion molding process. It can make resin permeate into any part of the products evenly and quickly. According to the different molding technology of products, it can be divided into two types: weaving type and extruding type. It has been proved that, extruding type can make workers easy to tile them without any curl. While regarding the weaving type, it is good for the flowing of air and resin because of its three-dimensional weaving structure. The demoulding effect is good and the cost is lower. Flow media mesh can be cut into any shapes. It is suitable for different shapes of products, with low consumption and good economic performance. It is widely applied to aerospace, wind-power blades, shipbuilding, racing, automotive, sports equipment and such composite manufacture industries.



3 layer flow media (flow media + release film + peel ply) is mainly used in vacuum infusion process, it can make the resin fast infiltrate into any part of the products. Save part of the vacuum infusion process and greatly improve efficiency.



Customized packaging (Min. order 5000 sqm)



l  Product Specifications:

Code

Gram(g/m2)

Color

Width(mm)

Temp . Resistant(°C)

Type

CVMW100

100

Green/Black

2000/4000

150

Weaving

CVMW160

160

Green/Black

2000/4000

150

Weaving

CVME100

100

Green

1200

150

Extruding

CVME200

200

Green

1200

150

Extruding

CVME230

230

Green

1200

150

Extruding

l  Product Features:

*The demoulding effect is good and the cost is lower

*The experiments show that, the resin flow media is easy to flat out, not easy to be curled. The diversion speed is faster than knitting type and resin less remained, which can help save the cost and reduce the labor intensive.

l  Packaging Information:

Plastic bag and pallet

l  Storage Method:

Stored in a cool and dry place, and make sure not directly touch the ground or wall to avoid moisture. Do not remove the original packaging when store.

l  Scenes To Be Used:

Resin infusion process, prepreg process. It is widely applied to aerospace, wind-power blades, shipbuilding, racing, automotive, sports equipment and such composite manufacture industries.

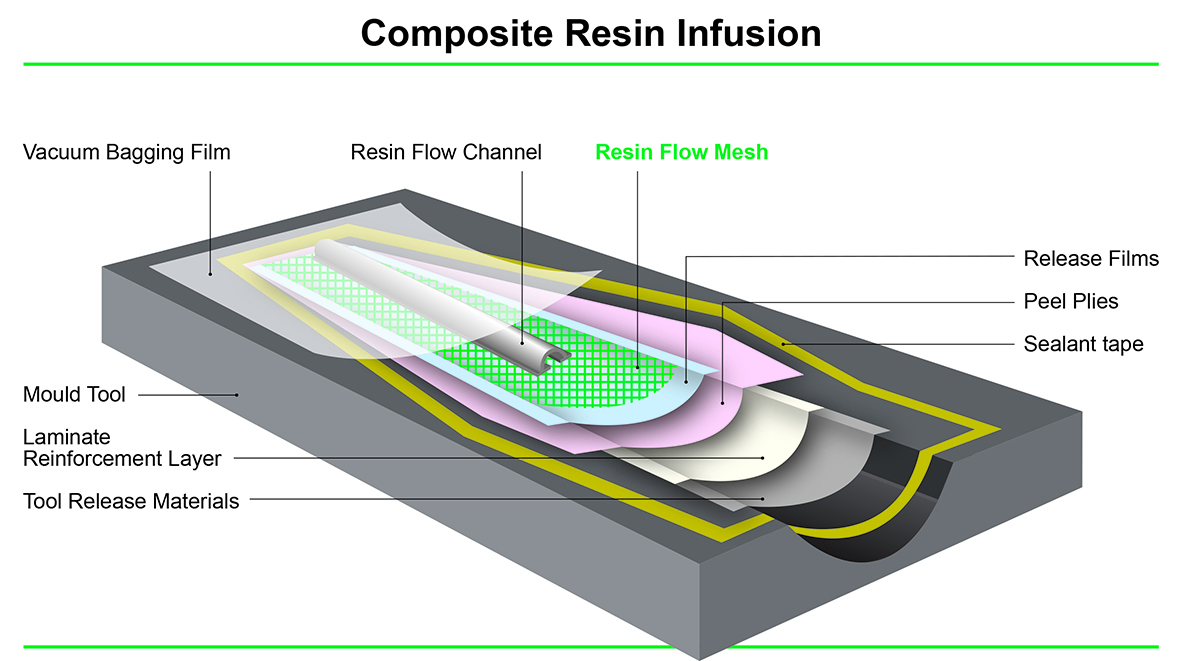

Composite Resin Infusion.jpg
