In the manufacture of advanced composite materials, peel ply (release fabric) is a crucial processing aid used to create a textured, clean bonding surface after resin cure. To prevent FOD (Foreign Object Debris/Damage)—such as accidental fragments left on the laminate—manufacturers integrate colored tracer lines (pinstripes) into the fabric.
Below is an overview of the common colored tracer lines found in industrial peel plies, their materials, functions, and typical applications.

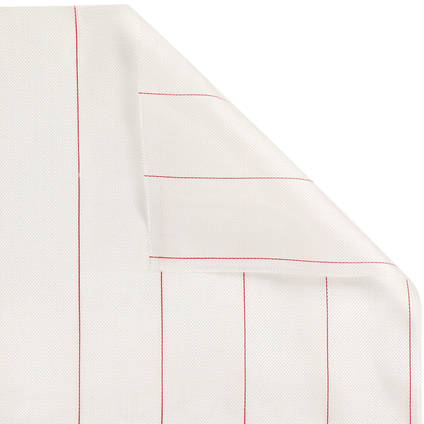

1. Red Tracer Lines (Most Common in Aerospace)
Materials & Construction: Typically woven into high-temperature Nylon 66 (or standard Nylon 6) base fabrics with heat-set treatment. The red tracer threads are usually dyed polyester or heat-resistant synthetic fibers spaced at regular intervals (e.g., every 50mm).
Core Function: High visual contrast against white/clear resin and black carbon fiber. Ensures operators can easily spot and remove all peel ply shreds before secondary bonding or painting.
Application Scenarios: Aerospace structural components, high-performance automotive parts, and wind turbine blades.

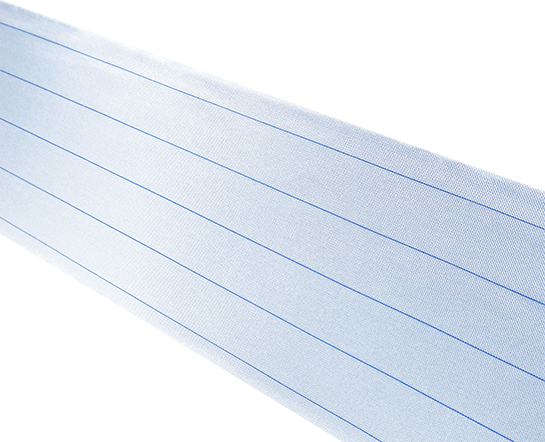

2. Blue Tracer Lines
Materials & Construction: Woven into standard or treated Nylon 6 or Polyester (PET) peel ply substrates using blue colored indicator yarns.
Core Function: Provides a distinct cool-toned contrast. It helps workers differentiate between various material specifications or suppliers on the shop floor when multiple plies are stocked simultaneously.
Application Scenarios: General marine manufacturing (yachts, hulls), sports equipment (surfboards, kayaks), and industrial tooling.

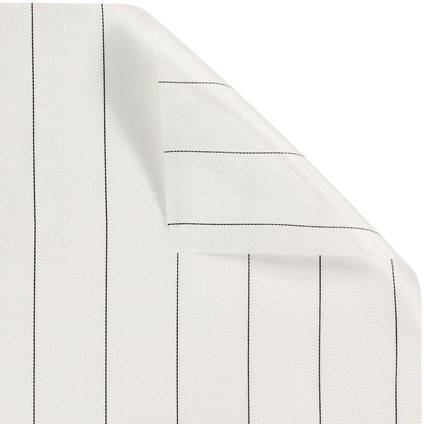

3. Black Tracer Lines
Materials & Construction: Integrated into light-colored or off-white Nylon fabrics using dark black synthetic tracer yarns.
Core Function: Maximizes contrast against very bright environments or specific white-pigmented resin systems, making alignment and post-cure inspection straightforward.
Application Scenarios: Vacuum infusion processes for architectural panels, automotive interiors, and general industrial composite parts.

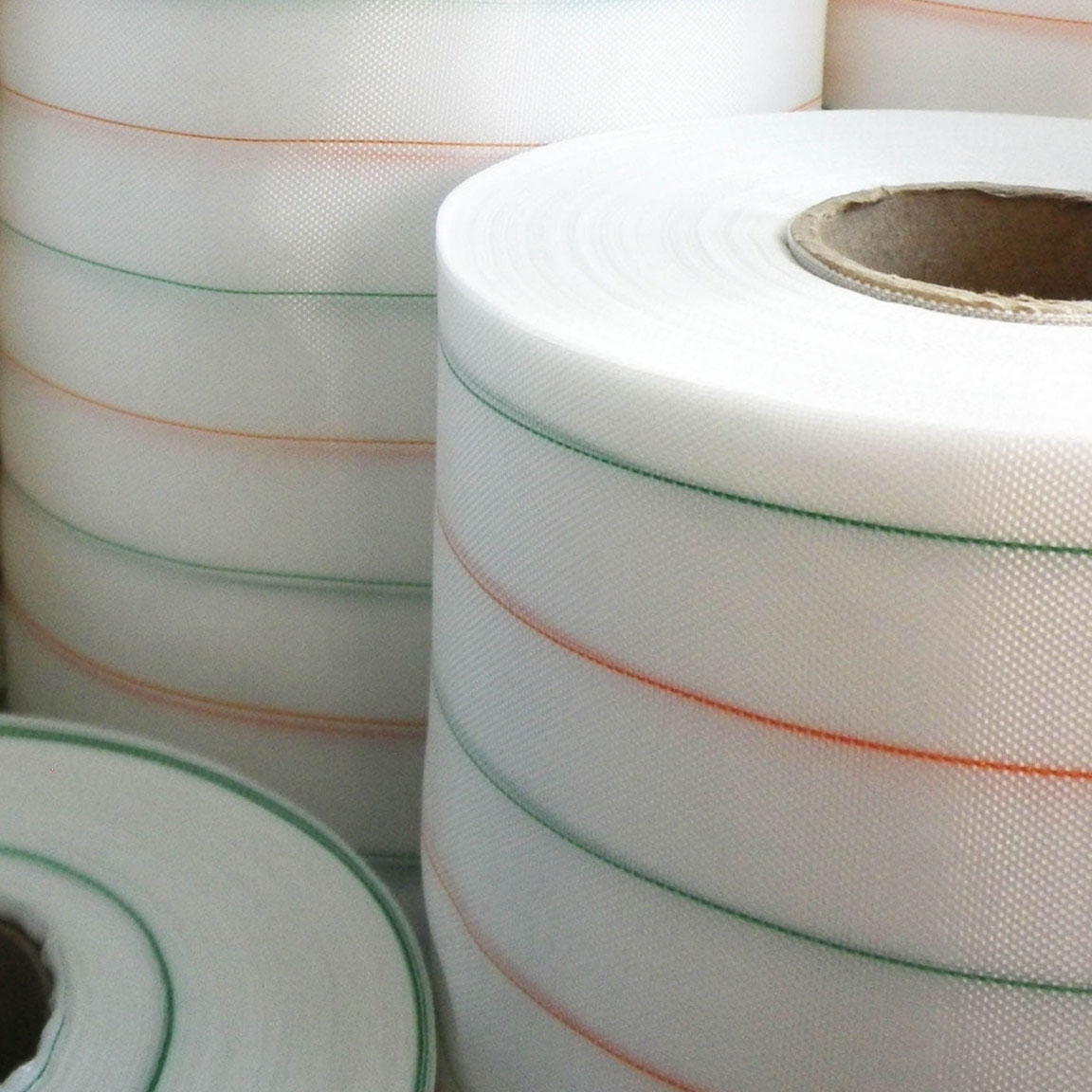

4. Orange / Green Tracer Lines (or Full Fluorescent Dyes)
Materials & Construction: High-visibility neon or fluorescent colored threads (or fully dyed fabrics) woven into heavy-duty Nylon 66 structures.
Core Function: Extreme visibility under low-light workshop conditions or large-scale tooling setups. Ensures absolute compliance with zero-defect safety protocols.
Application Scenarios: Large wind turbine blade manufacturing, aerospace wing skins, and complex multi-layer vacuum bagging operations where missing a small piece of peel ply could cause structural delamination.
